Ultra High-Pressure Components

Click to Expand

MAXPRO^® Technologies provides Maximator^® adapters, couplings, fittings, tubing, valves, and other ultra high-pressure components for a wide range of industrial applications. Maximator^® is a globally recognized manufacturer of quality components best suited for demanding, high-pressure applications. Learn more about the features and benefits of these components.

View Catalog Request a Quote

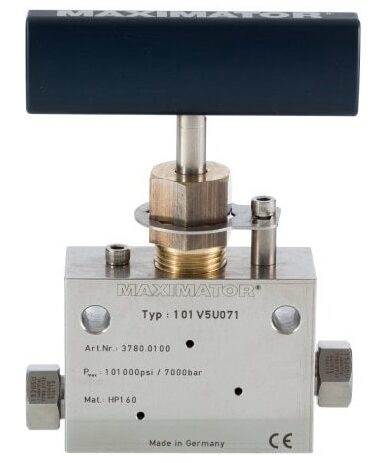

Ultra High-Pressure Valves

Our ultra high-pressure valves have a rising stem design and are rated to 101,000 psi. Here are the features and benefits of these valves that make them ideal for ultra high-pressure applications:

Corrosion Resistance: The HP160 stainless steel wetted parts with a 17-4 PH stem provides excellent corrosion resistance.
Superior Shut-Off: The metal-to-metal seating achieves bubble-tight shut-off, longer stem and seat life and greater durability for repeated open and close cycles.
Carbon and PTFE Packing: Includes metal back-up rings for reliable stem-to-body sealing.
Non-Rotating Stem: This feature prevents stem-to-seat galling.
Optimal Thread Cycle Life: The stem sleeve and packing gland materials reduce handle torque and extend thread cycle life. The rolled threads on the stem sleeve ensure smooth operation.
Safety Weep Holes: The packing areas and pressure connections have safety weep holes.

Ultra High-Pressure Fittings

Maximator^® ultra high-pressure fittings are available in the following sizes:

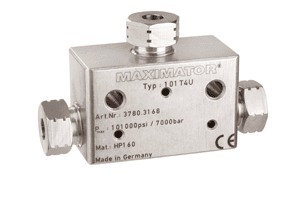

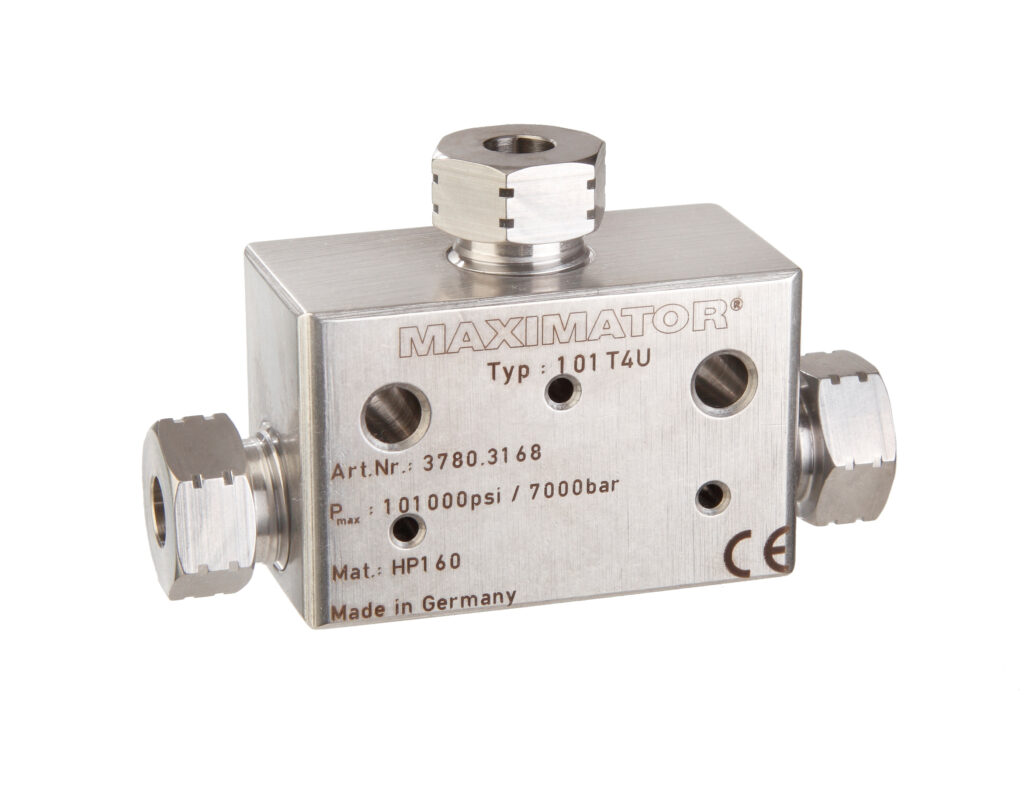

Pressures up to 101,000 psi with 1/4″, 3/8″, or 9/16″ UHP connections: Maximator^® ultra high-pressure fittings can be used with ultra high-pressure coned and threaded nipples and tubing and includes collars and glands. Mounting holes on all crosses, tees, and elbows are standard.

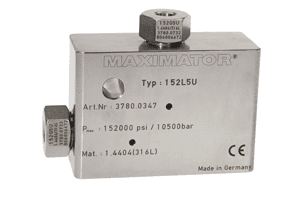

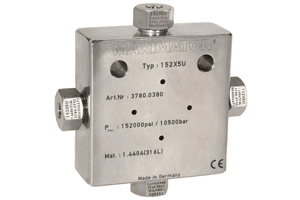

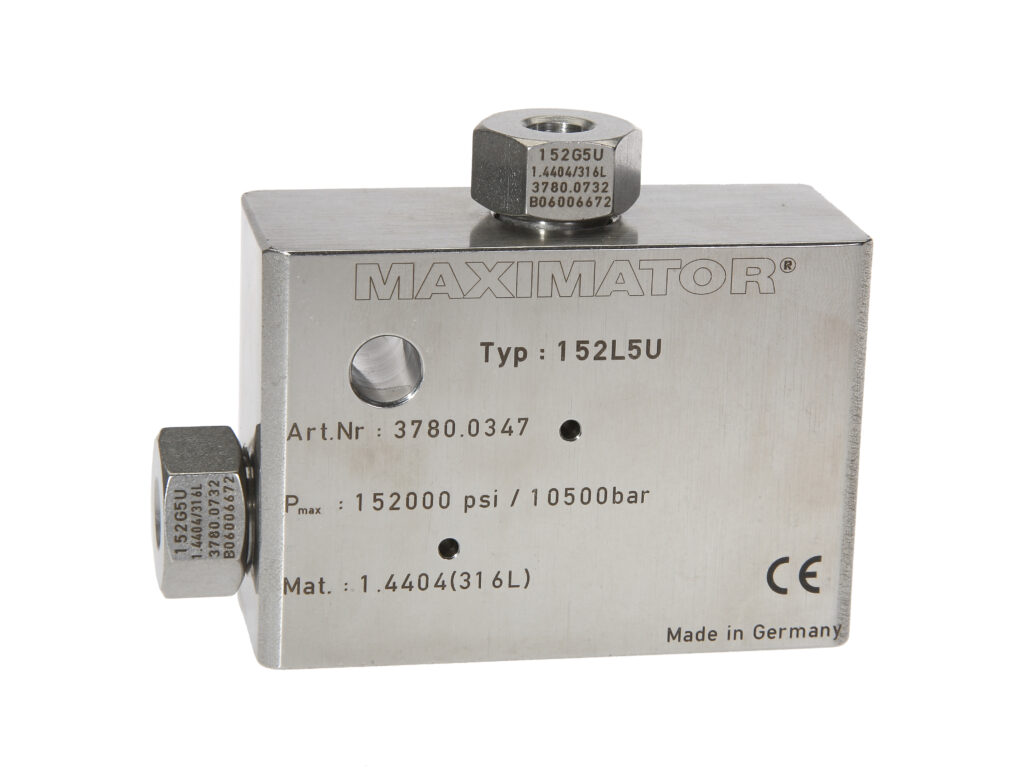

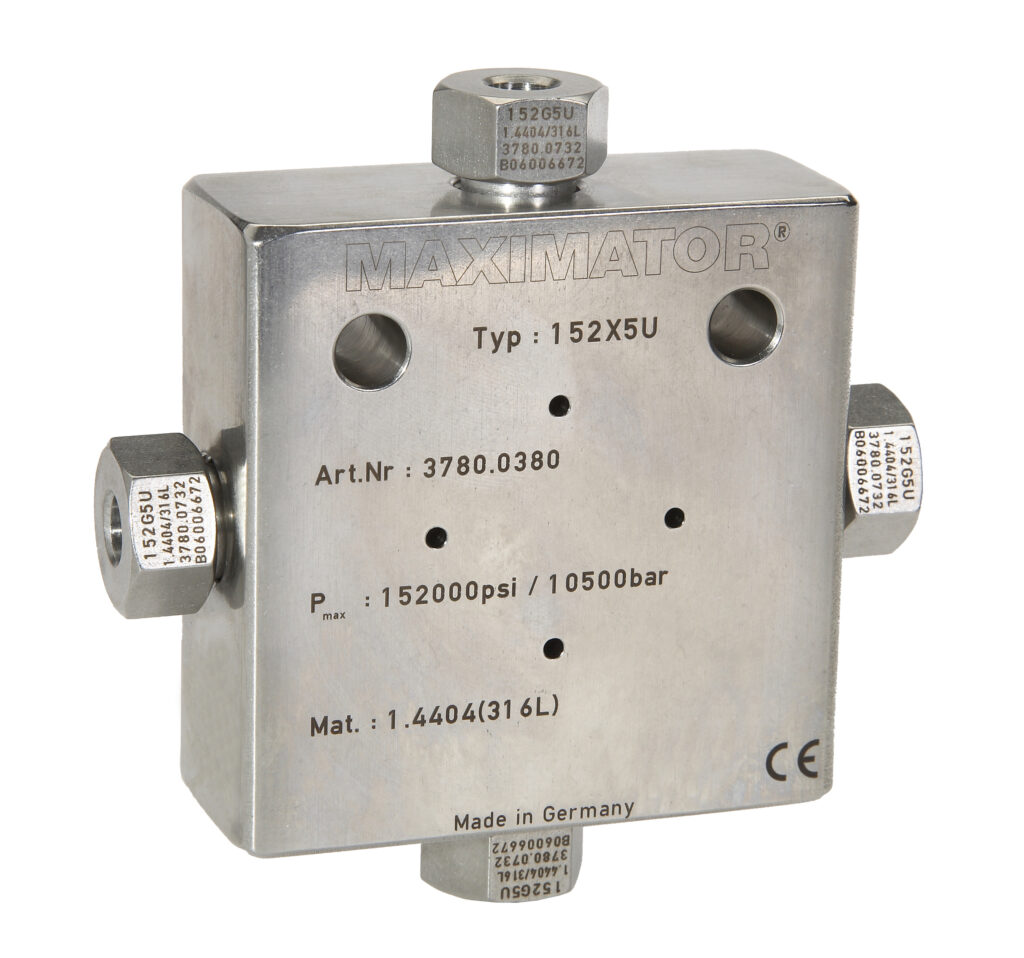

Pressures up to 152,000 psi with a 5/16″ UHP connection: Maximator^® ultra high-pressure fittings can be used with ultra high-pressure tubing. All ultra high-pressure fittings have coned and threaded connections and will include collars and glands. All crosses, tees, and elbows include mounting holes.

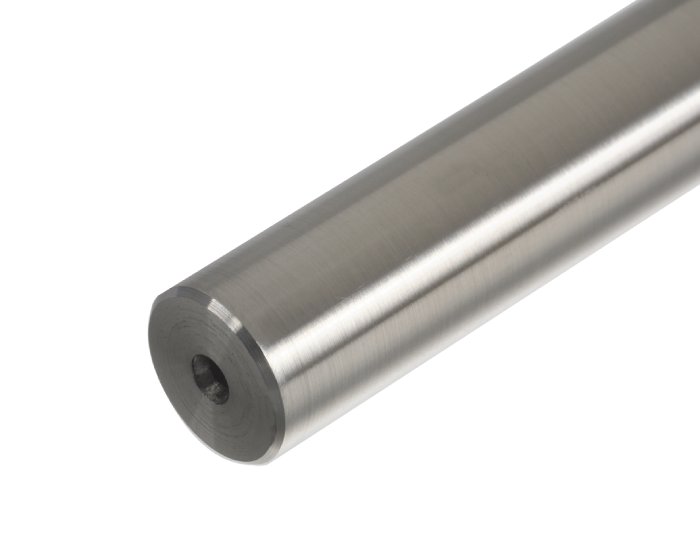

Ultra High-Pressure Tubing

MAXPRO^® offers thick wall tubing products with flow areas to support the ultra high-pressure valve and fitting line. The tubing adheres to strict quality control, inspection, and manufacturing standards. The dimensional tolerances match the requirements of ultra high-pressure coned and threaded connections.

We offer two types of ultra high-pressure tubing:

Pressures to 101,000 psi with 1/4″, 3/8″, or 9/16″ UHP connections: HP160 is the material of construction for this tubing.

Pressures to 152,000 psi with a 5/16″ UHP connection: Ultra high-pressure, 316SS tubing is capable of handling pressures up to 152,000 psi with a 5/16″ UHP connection.

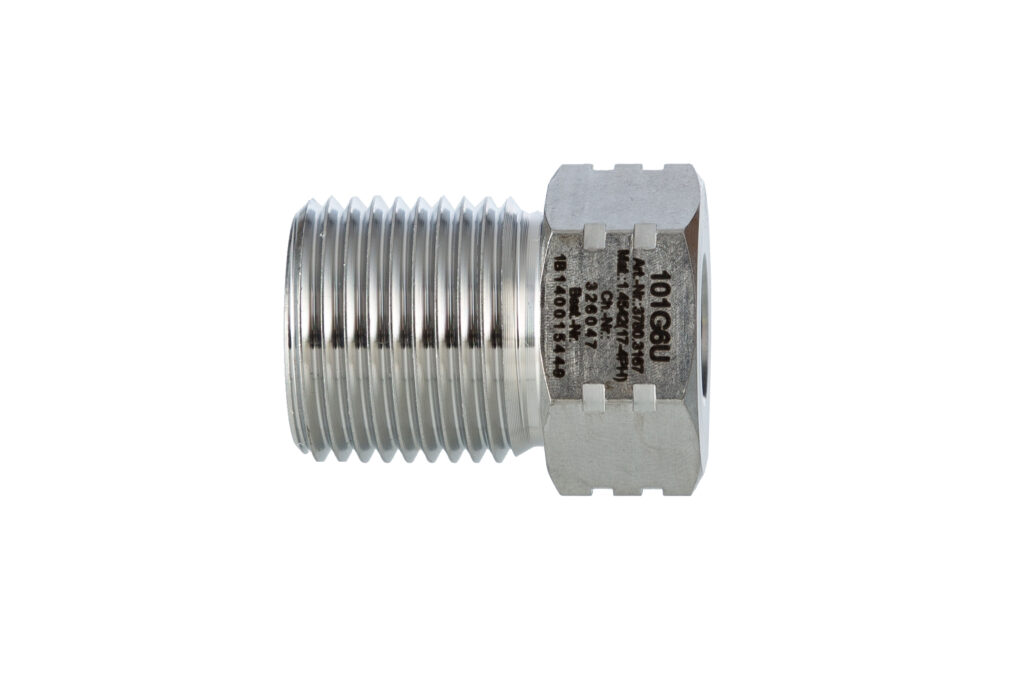

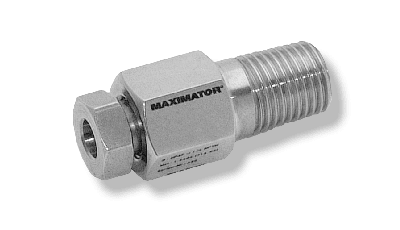

Ultra High-Pressure Adapters and Couplings

Ultra-high pressure adapters and couplings feature coned and threaded connections for a secure, leak-proof connection. These can handle pressures up to 152,000 psi are available in 1/4″, 3/8″, or 9/16″ and 5/16” tube sizes.

The following types of ultra high-pressure adapters and couplings are available:

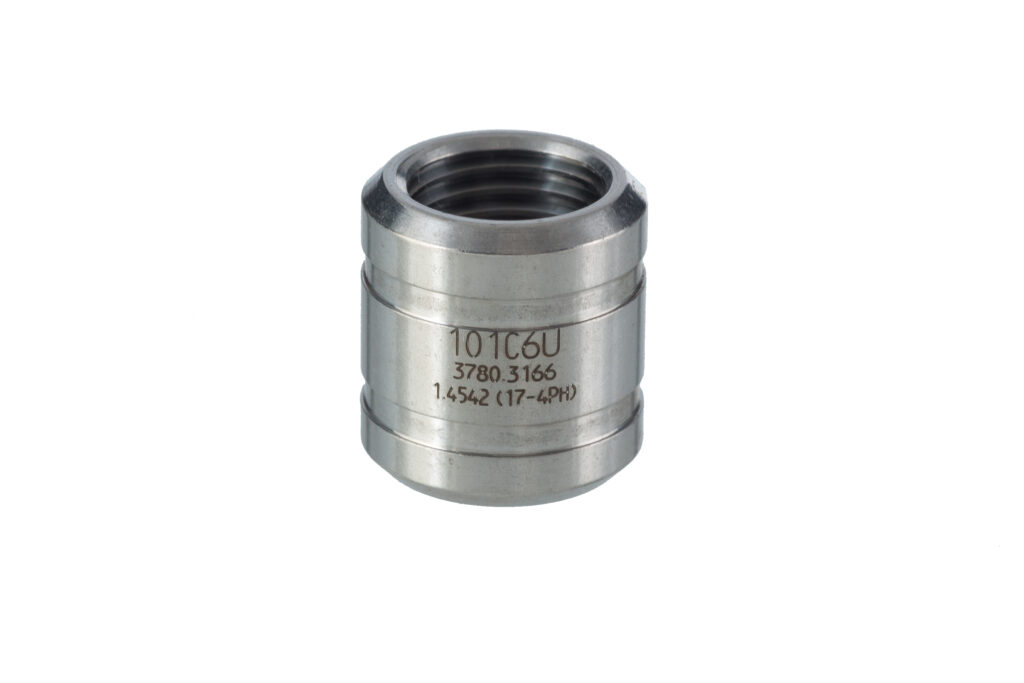

Couplings (female-to-female): Connect two male ends of piping or tubing.

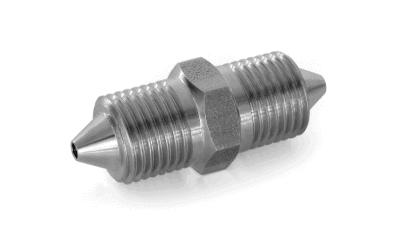

Adapters (male-to-male): Connect two female fittings.

Adapters (male-to-female): Allow the joining of male to female connections.

Ultra High-Pressure Components from MAXPRO^® Technologies

Founded in 1995, MAXPRO^® Technologies is the exclusive North American distributor of Maximator^® ultra high-pressure valves and fittings.

Contact us to learn more about our competitively priced, high-quality products. You can also request a quote for specific information relating to your high-pressure requirements.
