Videos demonstrate the capabilities of equipment, showcasing the possibilities of how high pressure test equipment systems, data loggers, and coning and threading machines can simplify and and enhance your business requirements.
Videos Maxpro® Technologies Inc.
Coning and Threading machine
The Maxpro® Technologies Coning and Threading machine provides state of the art speed and precision for coning and threading stainless steel high pressure tubing. Tubing sizes range from 1/4″ to 1-½” OD.
Coning and Threading Machine U.S. Patent 9,015,915
Coning and Threading Machine Video in (English)
Coning and Threading Machine Video in (Arabic)
Coning and Threading Machine Video in (Chinese)
Coning and Threading Machine Video in (French Canadian)
Coning and Threading Machine Video in (French)
Coning and Threading Machine Video in (German)

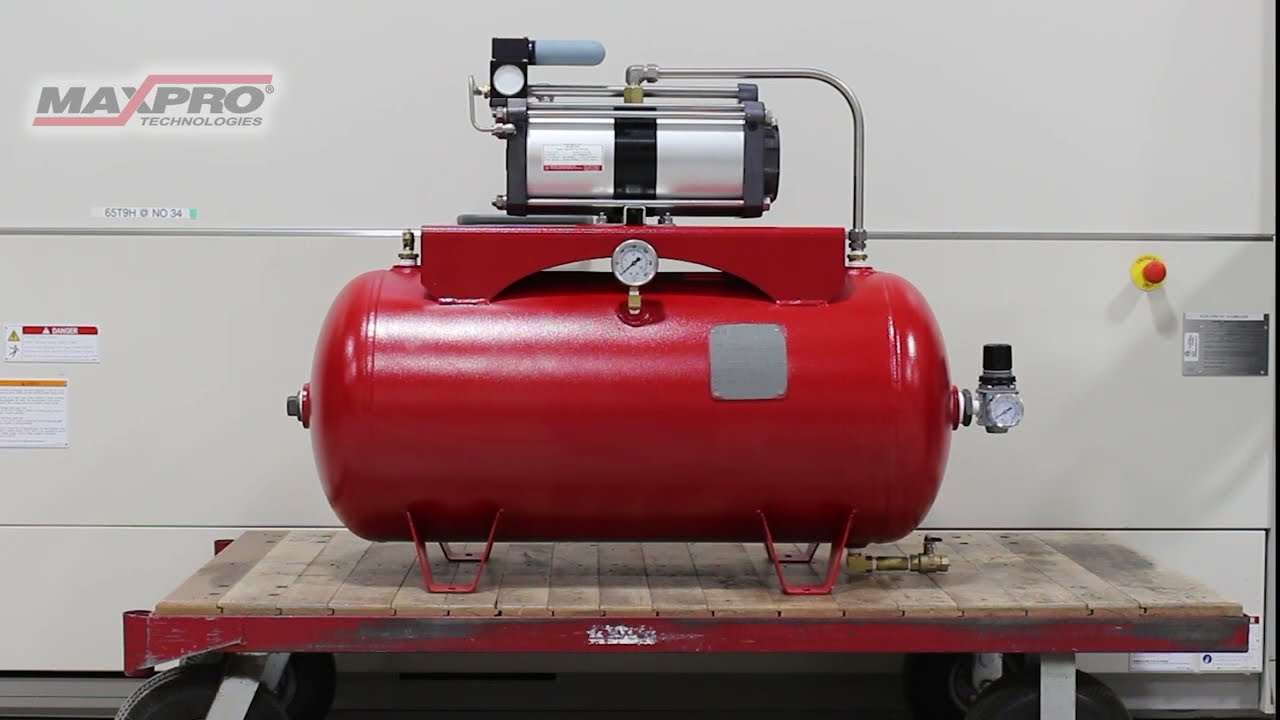

AS GPLV2 30GH Air Amplifier System
This air amplifier system featuring a GPLV2 Maximator air amplifier and includes a thirty gallon 200 psi air tank. This unit draws from the plant air supply, amplifies it to a maximum of two times and delivers high pressure regulated air to the required point of use. The system comes completely assembled and ready to run, requiring only an air supply in and has a single outlet to the point of use.

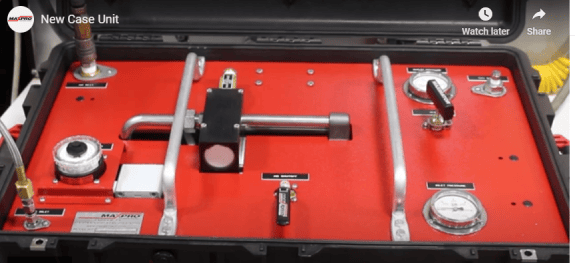

Gas Booster Case Unit
Maxpro® MTNB10-DLE75-CASE gas booster case unit. This portable system is designed for nitrogen use and utilizes a DLE75 air driven gas booster.
30,000 PSIG Custom Burst Test Bench

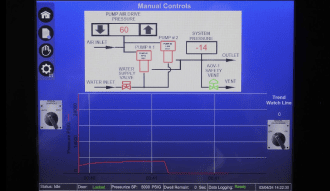

This Test Bench System from Maxpro Technologies is used for burst testing to 30,000 psig. This system features Maximator brand valves, components and PLC-controlled PP72 and L300VE liquid pumps. The watch line allows the user to view real time test pressures while archiving the data and generating a printable test report.

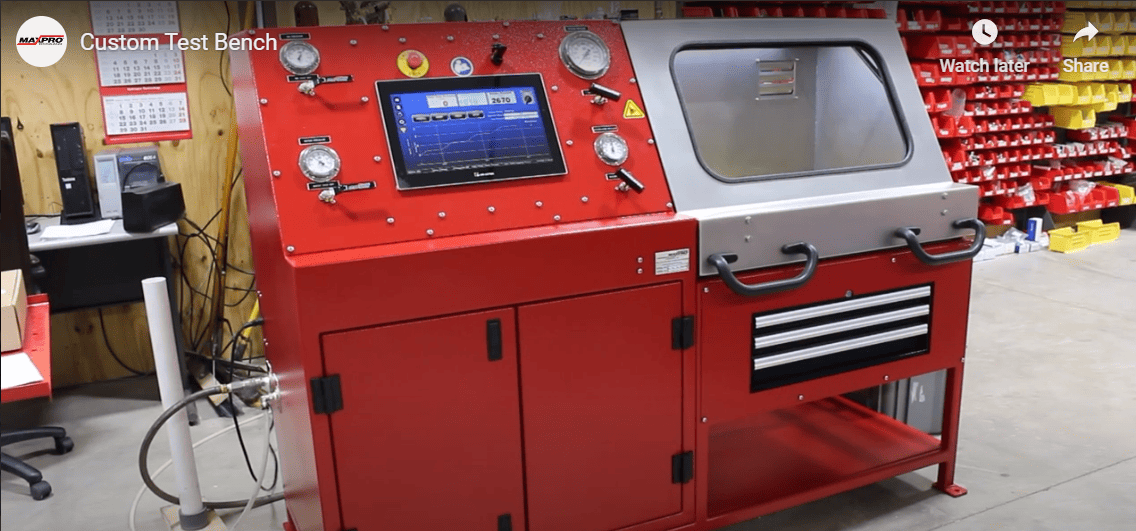

Custom Test Bench
Custom test bench from Maxpro Technologies for liquid burst testing to 1,500 psig. This bench features a Maximator brand L25D-EV high pressure liquid pump and is PLC controlled. This test bench offers a true block and bleed isolation test solution.

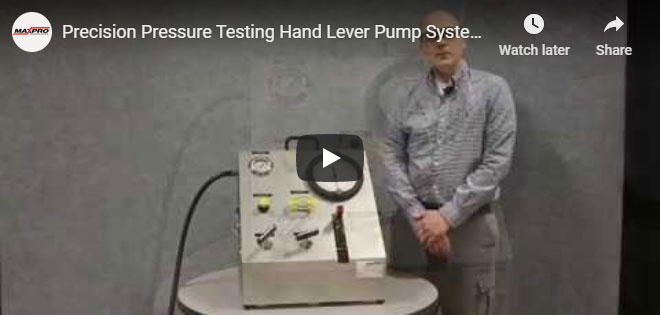

Precision Pressure Testing Hand Lever Pump System with Mirror Faced Gauge Demo
Bench Top High Precision Testing System for pneumatic and manual operation
Custom Burst Test System
Custom Burst Test System featuring GoPro® footage of high pressure sample bursting. This system features the GX60 Maximator® Liquid Pump.

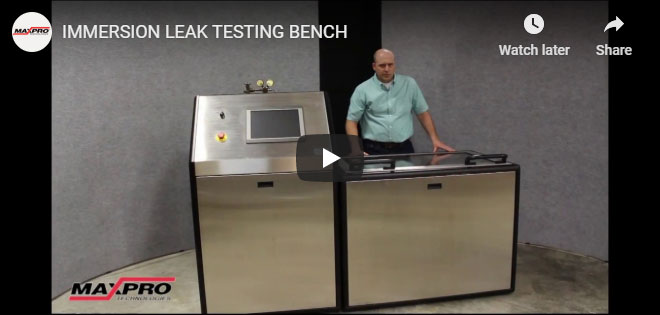

Immersion Leak Testing Bench
Nitrogen Test Stand featuring an immersion chamber for leak testing. The system utilizes a DLE30 Maximator® Gas Booster.

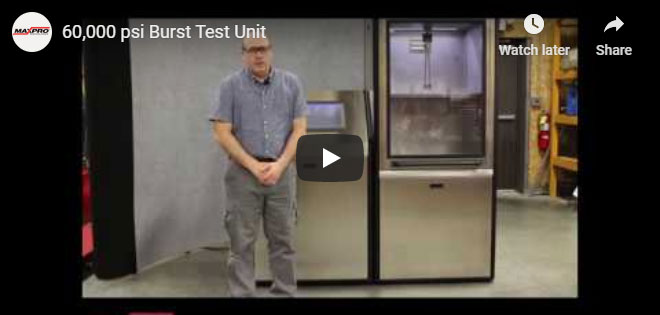

60,000 psi Burst Test Unit
60,000 PSI Hydrostatic Burst Unit featuring a vertical control cabinet and fully automated controls. This custom system features PP22, PP111, and PP189-3 Maximator® High Pressure Air-Operated Liquid Pumps.

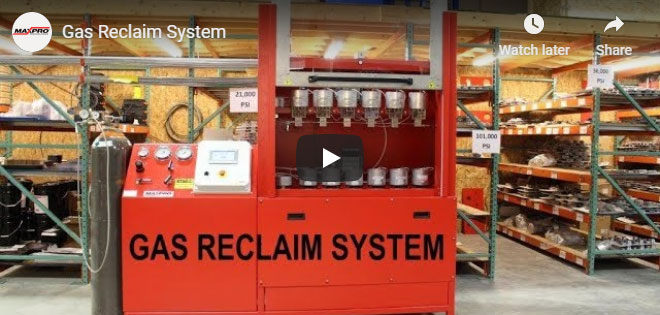

Gas Reclaim System
Custom engineered gas reclaim system for gas scavenging. This gas scavenger features a Maximator DLE30 Gas Booster.

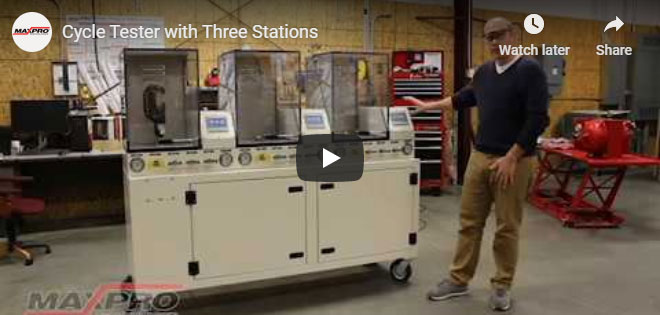

Cycle Tester with Three Stations
Three station cycle testing with dedicated controls designed to cycle hydraulic crimps. This custom system features a Maximator L150-VE High Pressure Air-Driven Liquid Pump.
Gas Booster System with Air Control and Air Pilot Switch
Single Stage Boot Strap Gas Booster Package Explained. This system utilizes a Maximator DLE15 Gas Booster.

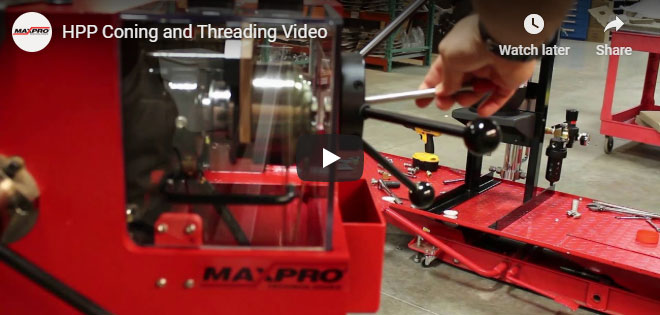

High Pressure Food Processing Coning & Threading
Coning & Threading Machine in action saves maintenance time in the High Pressure Food Processing (HPP) Industry.
Hydrostatic Test Bench with Dual Pressure Ranges
Hydrostatic Test Bench for pipe up to 12 feet long and 10,000 psi. This test bench utilizes PP4, PP22, and L100-VE Maximator High Pressure Air-Driven Liquid Pumps.

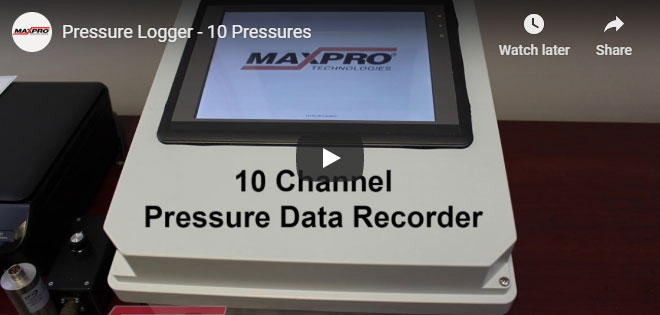

High Pressure Data Pressure Logger for 10 Pressures
Pressure Logger for ten pressure transducers. Can read and record data simultaneously and produce a test report with real-time and peak pressures.

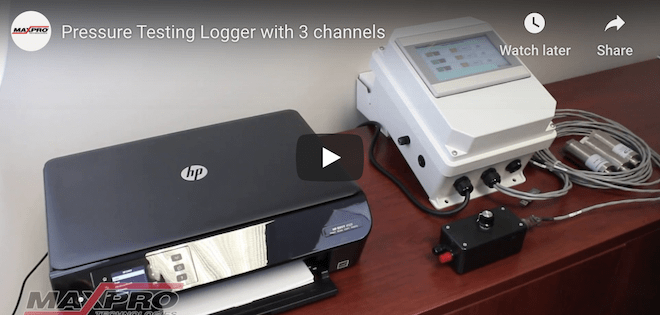

Pressure Testing Recorder for 3 Pressures
Data Logger for 3 Pressures. Real-Time Pressure and Peak Pressure is recorded for all three transducers.

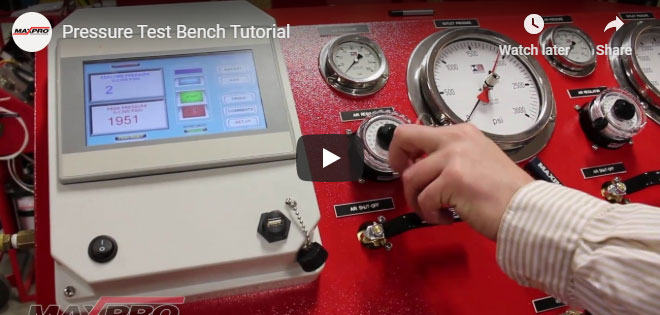

Pressure Test Bench Tutorial
Pressure Test Bench Tutorial for 2,000 PSI and 50,000 PSI

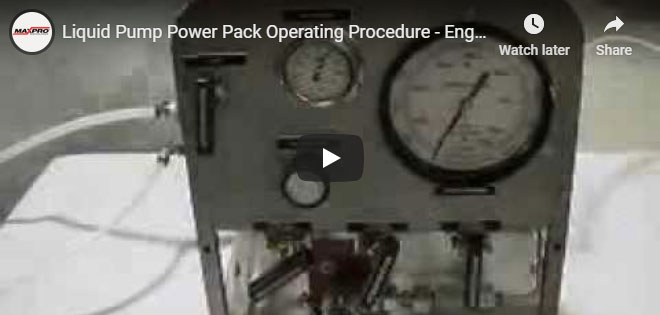

Air Driven Liquid Pump Power Pack in English and Spanish
Operational Instructions in Spanish and English for the Air Driven Liquid Pump Power Pack

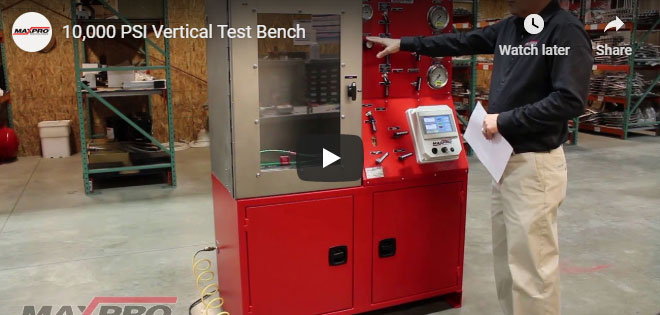

10,000 PSI Vertical Test Bench
Three Pump Vertical Test Bench with three pumps for 1,000, 5,000, and 15,000 psi. Maximum rating is 10,000 psi.

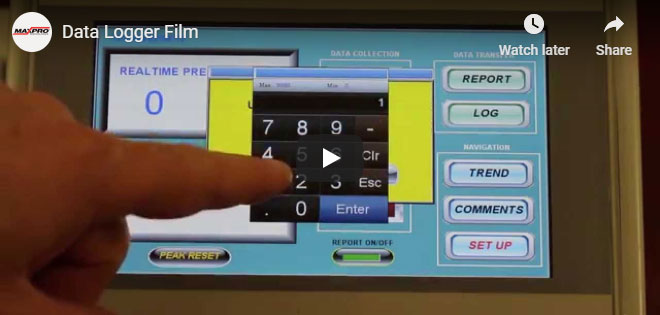

Data Logger Video
Pressure Loggers (Data Loggers) from Maxpro Technologies are available 0-500 PSI to 0-60,000 PSI. They are able to record temperatures and dual pressures as options. Data can be transferred directly to the computer by ethernet connection or via a USB stick.

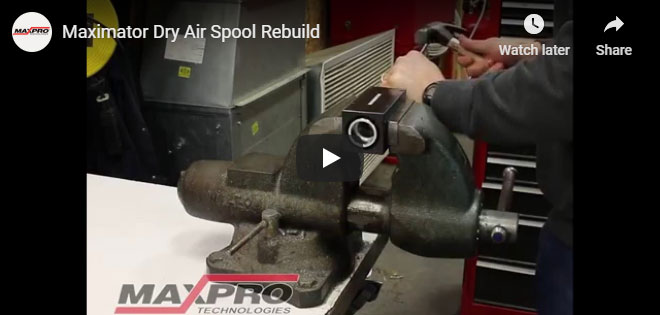

Rebuilding a Dry Air Spool Valve
Detailed instructions for rebuilding a Dry Spool Air Valve
Gas Booster System for Harsh Environment
Unique Gas Booster System for outdoor severe climate service utilizing a stainless-steel cabinet and featuring two Maximator DLE15-15 Gas Boosters.

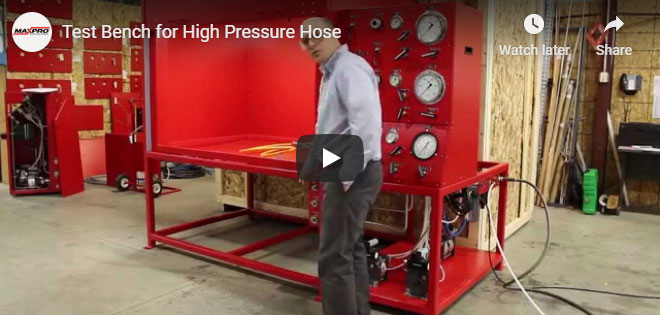

Test Bench for High Pressure Hose
Demonstration of a test bench for high pressure hose, or other items that require testing, testing at three different pressures, 10,000 psi, 16,000 psi and 65,000 psi.

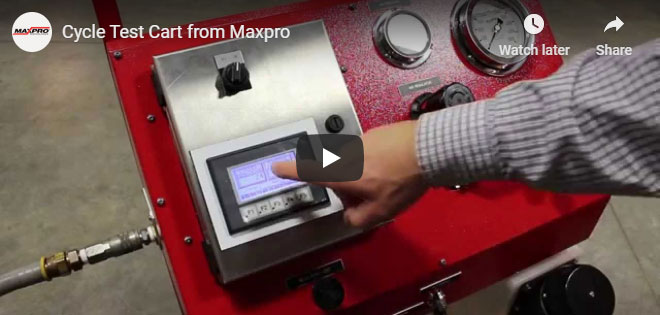

Cycle Testing Cart Demonstration
This cycle test cart is set up with a PLC board to control and count the cycles and pressures during testing. This air operated Maxpro system was designed to test air conditioning coils, but can be modified for any pressure testing needs.

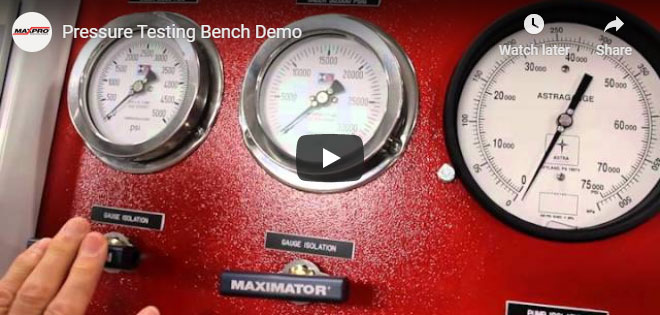

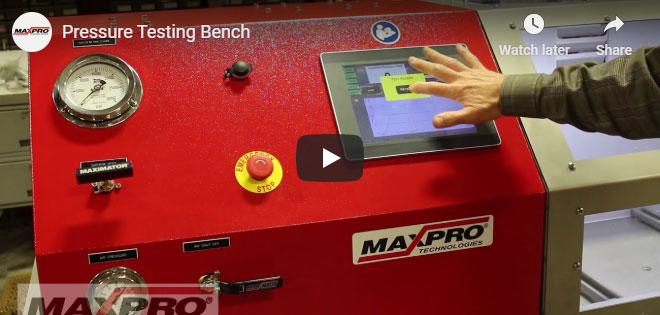

High Pressure Test Bench Demonstration
This test bench operates with 100 PSI air and water inlets, up to a test pressure of 60,000 psi. Used for burst test recording, the unit has four Maximator pumps and a PLC board that are controlled by an electronic pressure regulator.

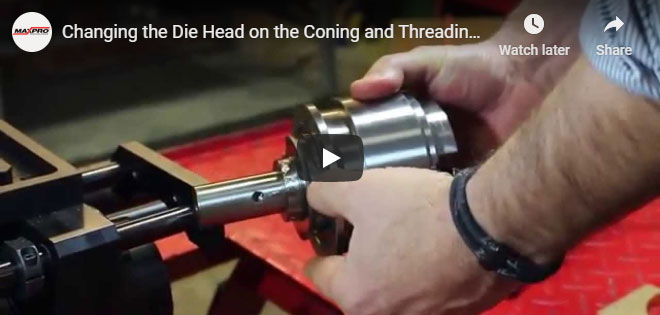

Changing the Die Head on the Coning and Threading Machine
This video gives you directions on removing the die head on the coning and threading machine so that routine maintenance on the die head can be done.

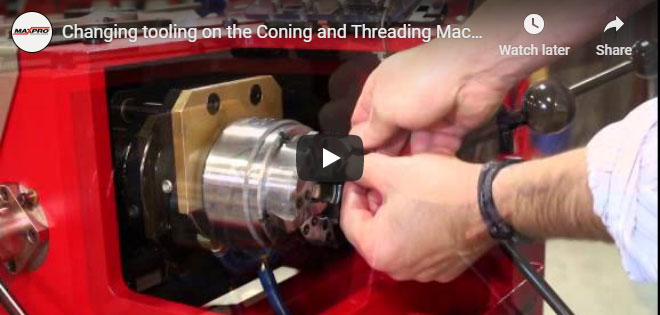

Changing tooling on the Coning and Threading Machine
This video instructs users how to change the die chasers on the Maxpro Coning and Threading machine. Die chasers can be replaced when worn, or if you want to run a different size tubing.

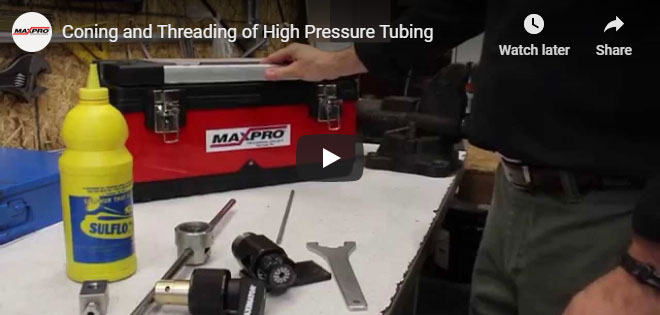

Coning and Threading of High Pressure Tubing
Manually coning and threading high pressure tubing can be done with the Maxpro Coning and Threading tool kit. Kits are available for all sizes in medium pressure, high pressure, or a complete tool kit has both. You can also get the kit with just the one or two sizes of tooling that you use.

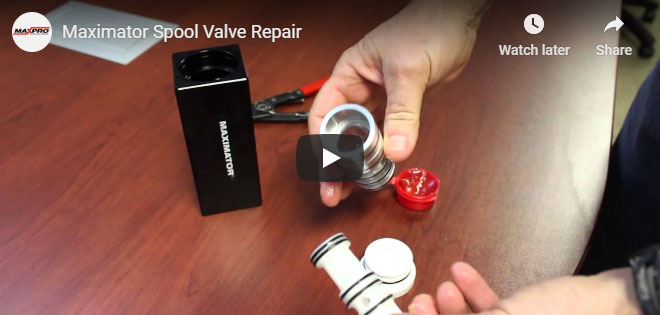

Maximator Spool Valve Repair
This video shows you how to replace the O-Rings on a Maximator Spool Valve, a very common repair. There is a kit available with all of the parts needed to rebuild a spool valve. Kits are available for all models of Maxpro Maximator units – Spool kit – Air Drive Kit – Gas Section kit – and Check Valve kit. Contact us if you need a parts breakdown!

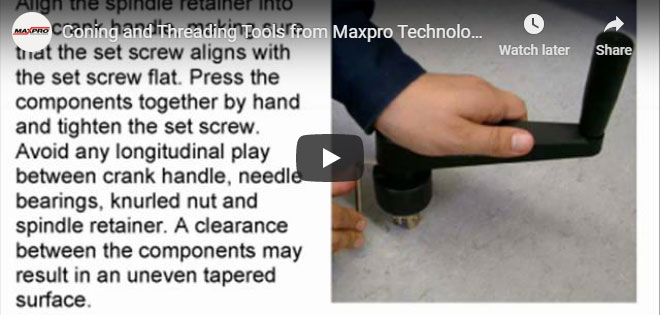

Coning and Threading Tools from Maxpro Technologies
Check here for instructions on how to use the tools in the coning and threading tool kit. There is a video of these tools in action above.

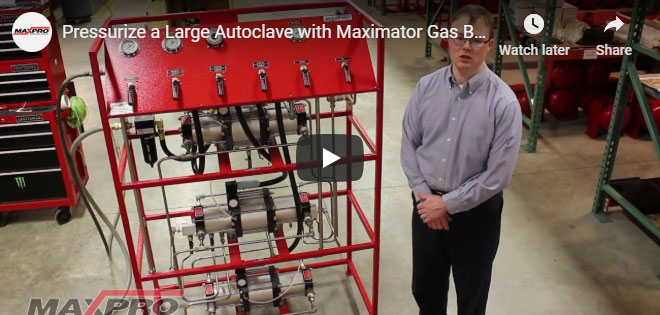

Pressurize a Large Autoclave with Gas Boosters
Custom Triple Gas Boosters in Parallel. This custom system utilizes three Maximator DLE2 Gas Boosters.
Custom Pressure Text Bench for 60 psi to 20,000 psi. Can be used to hydro test, autofrettage, or leak check oil field products. This custom-designed system utilizes Maximator PP4, PP22, and PP189 High Pressure Air Driven Liquid Pumps.

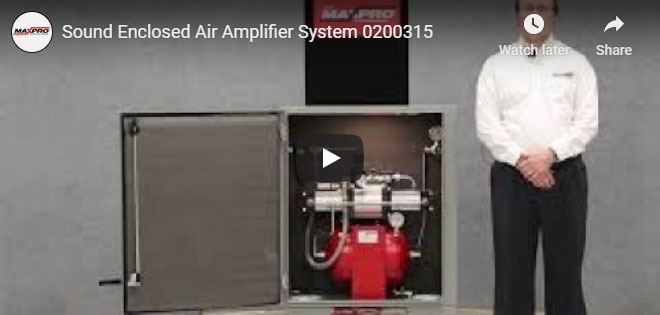

Sound Enclosed Air Amplifier System
Custom Sound Enclosed Air Amplifier System with a sound deadening enclosure utilizing a DLA5 air amplifier with a 5:1 ratio.

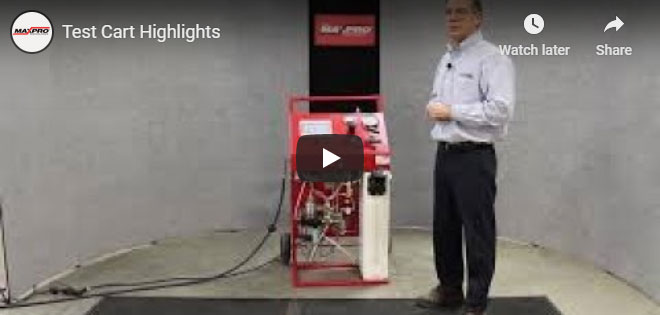

Test Cart Highlights
This Maxpro Cycle Test Cart utilizes an L25 Liquid Pump. This system is rated for 3,000 psi and can be operated manually or automatically. The original application involved testing air conditioning coils.

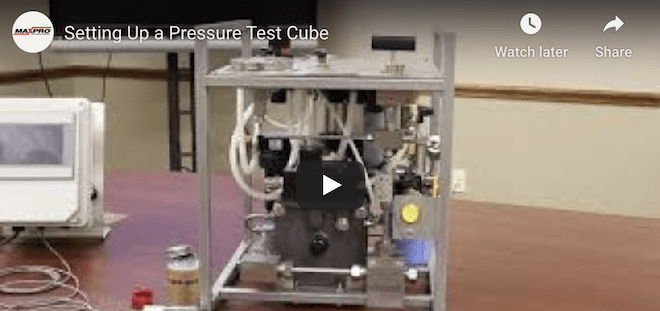

Setting Up a Pressure Test Cube
Learn to assemble a high pressure coned and threaded connection using a MAXPRO® Power Cube, Data Logger and custom-made coned and threaded tubing nipple made from in-stock tubing.
